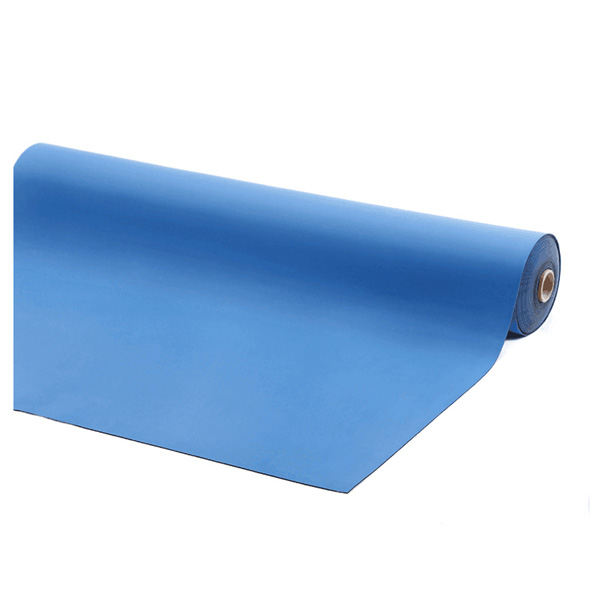

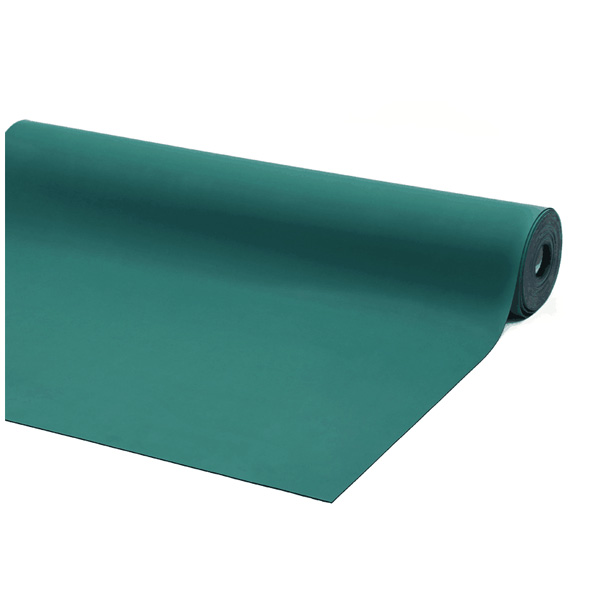

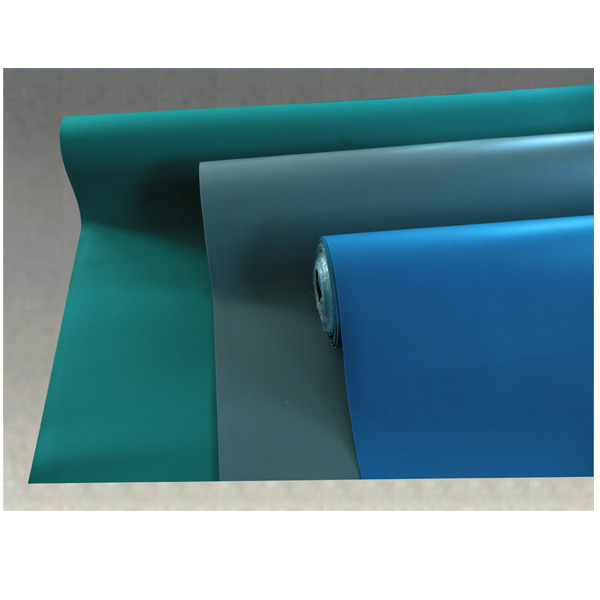

D0401 Anti static table mats static control mats electrostatic discharge mats

  • Model: D0401
  • Brand: Maxsharer
  • Delivery: 10-15 days
  • Warranty: 12 months

INQUIRY NOW

×Enter your message

Description

-ESD rubber mat used for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.

- Eliminate damages caused by static electricity.

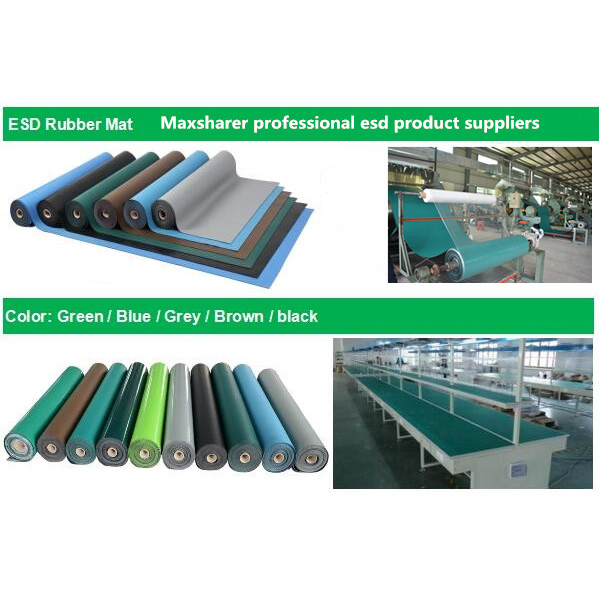

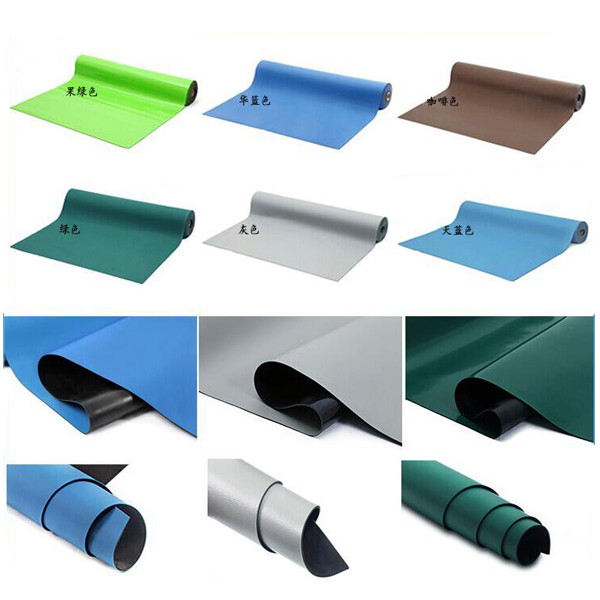

-Standard colors: Green, Grey, Blue (Customized colors are available.)

-Standrad sizes: 0.6mx10m, 1x10m, 1.2x10m (Any customzied sizes are available.)

-Thickness: 2mm, 3mm

Parameter of rubber mat/ground mat (thickness: 2mm )

Static Dissipation layer

Surface resistance

107-109 Ω

Friction static voltage

<100V

Conductive layer

Surface resistance

<=106Ω

Friction static voltage

<50V

Static decay time

5000V-500V

<1.9s

Volume resistance

107-1010 Ω

Specification

Test Item

Test Result

Tension Strength

3.6Mpa

Breakage coefficient of elongation

188%

Tear strength(right angle)

20.6KN/M

Resilience (6pcs sheets lapping over)

14%

Temperature of impact embrittlement (not cut)

-25°C No damage

Permanent variation under 70°C*22h, 25% compression

17.9%

Aging in hot air(70°C*22h)

Variation of tension strength

+8.0%

Variation of breakage coefficient of elongation

-3.8%

Heat loss

1.08%

Test Standard: GB1040, GB/T529, GB1681, GB5470, GB10654, GB/T7141

Application

-ESD rubber mat used for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc.

- heat resistant and a perfect choice for use around soldering irons and other heat sources.

Package

10m/roll,

1roll/carton

20cartons/pallet
