The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer
Adjustable through screws, gear adjustment.
Common type (60℃) and heat-resistance type(120℃ , 150℃) are available.
Surface resistance: 104~106 Ω.
| P．N． | Base Material | Adjust. | MaxTem. | mm Exterior Size | Adjust. mm | mm Ref.Position |
mm Guide Slot |
PCB Slots | kg weight |
|||||
| L | W | H | A | B | D | Ws | P | |||||||

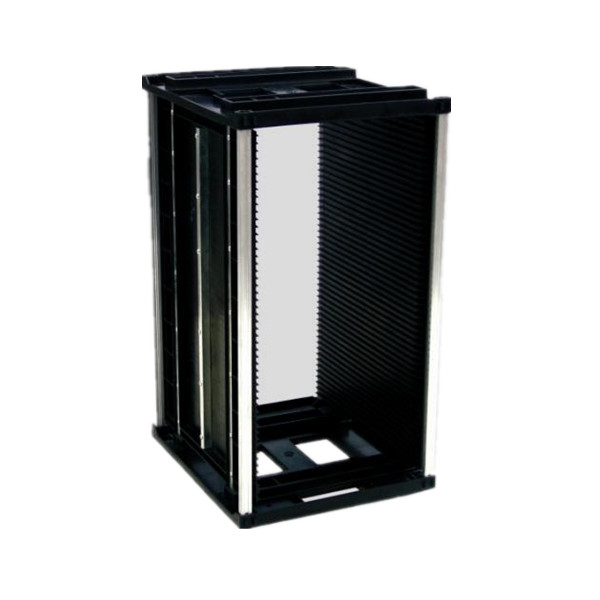

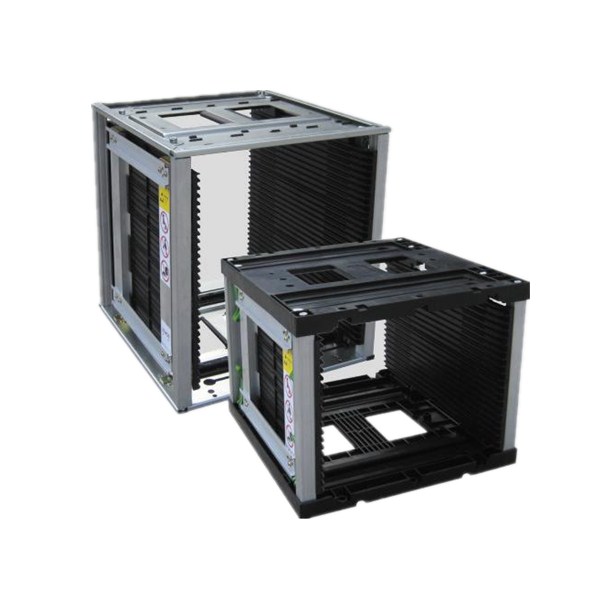

| B0101 | Plastic | Gear track | 60℃ | 355 | 320 | 263 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 20 | 4.7 |
| B0102 | Plastic | Screw | 60℃ | 335 | 315 | 580 | 80-250 | 34 | 34 | 3.5 | 8.0 | 10.0 | 50 | 5.1 |

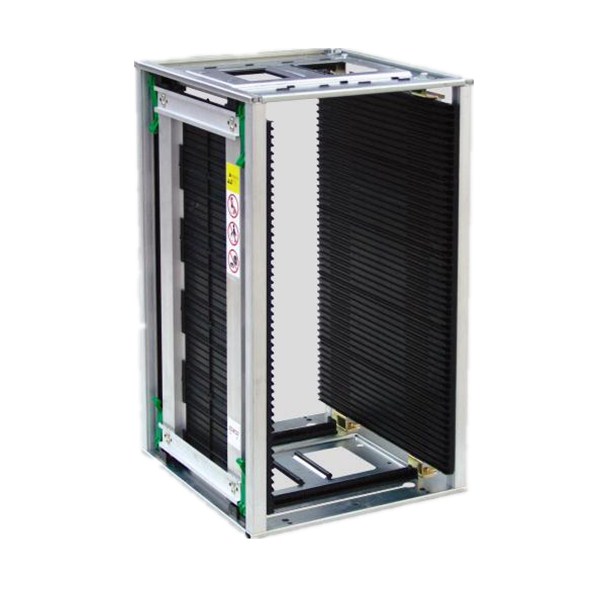

| B0103 | Metal | Gear track | 120℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.6 |
| B0103A | Metal | Gear track | 120℃ | 400 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.8 |
| B0103-AU | Metal | Auto adjustment | 120℃ | 400 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.8 |
| B0104 | Metal | Screw | 150℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 5.7 |
| B0105 | Plastic | Gear track | 60℃ | 355 | 320 | 563 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 4.1 |
| B0106 | Metal | Gear track | 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 | 7.6 |
| B0106-3 | Metal | Gear track | 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 |
7.8 |
| B0107 | Metal | Screw | 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 |
7.7 |
| B0107-3 | Metal | Screw | 120℃ | 460 | 400 | 563 | 50-330 | 34 | 34 | 3.5 | 5.0 | 10.0 | 50 |
7.9 |

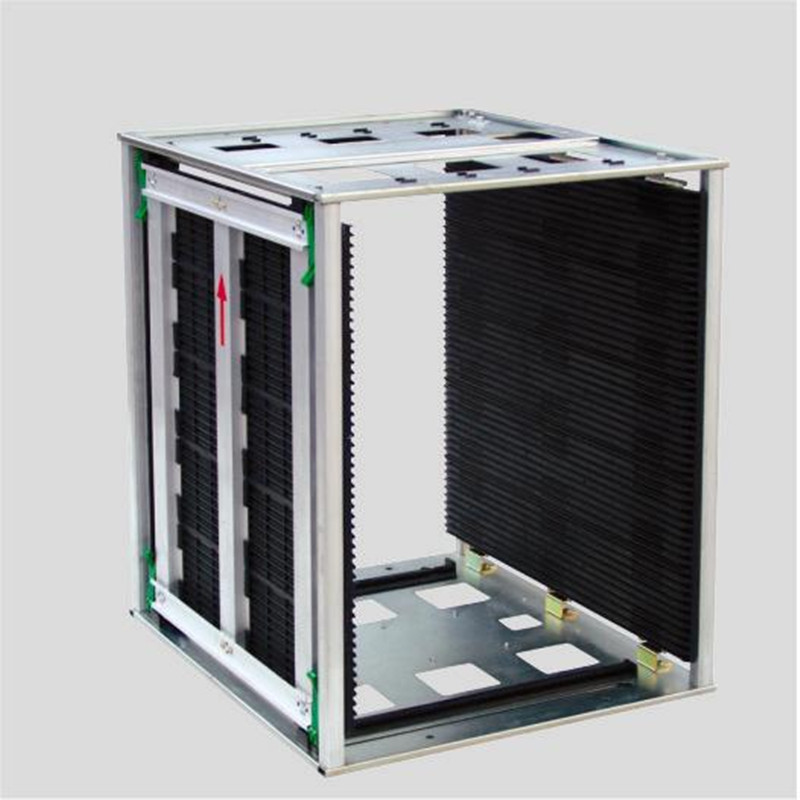

| B0108 | Metal | Gear track | 120℃ | 535 | 460 | 570 | 50-390 | 34 | 41 | 3.5 | 5.0 | 10.0 | 50 | 10.5 |
| B0109 | Metal | Gear track | 120℃ | 535 | 530 | 570 | 120-460 | 34 | 41 | 3.5 | 5.0 | 10.0 | 50 | 12.7 |

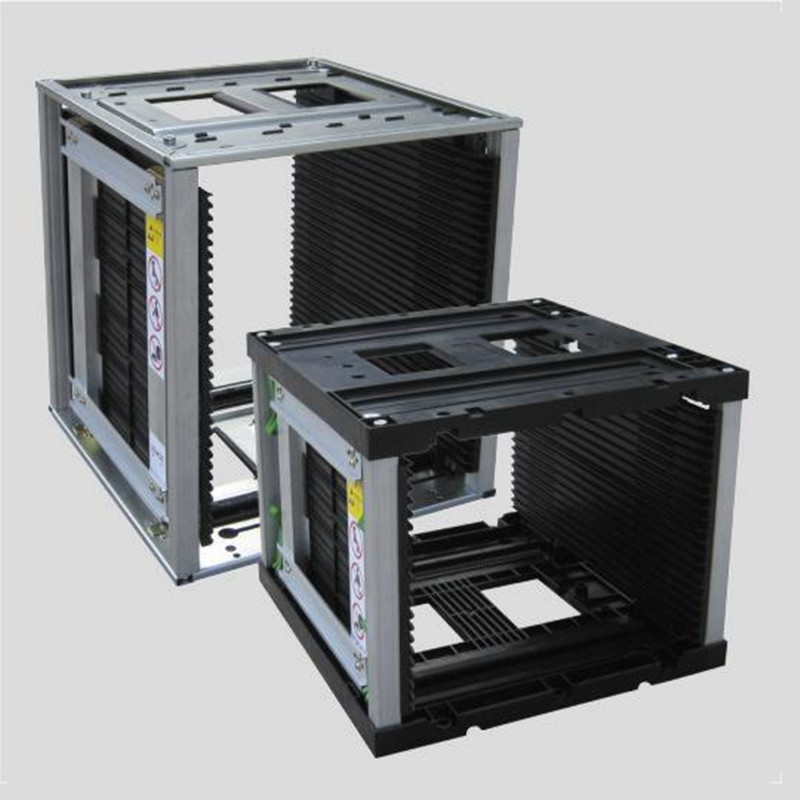

| B0110 | Metal | Gear track | 120℃ | 355 | 320 | 263 | 50-250 | 34 | 34 | 3.5 | 5.0 | 10.0 | 30 | 5.3 |
Base: P-Conductive PP, M-Zincification Iron
Adjustment: G-Gear track adjustment, S-Screw adjustment
Max tolerant temperature: 60℃,120℃,120~150℃ different material
PCB slots:The number of the SMT magazine rack Can accommodate PCBs
