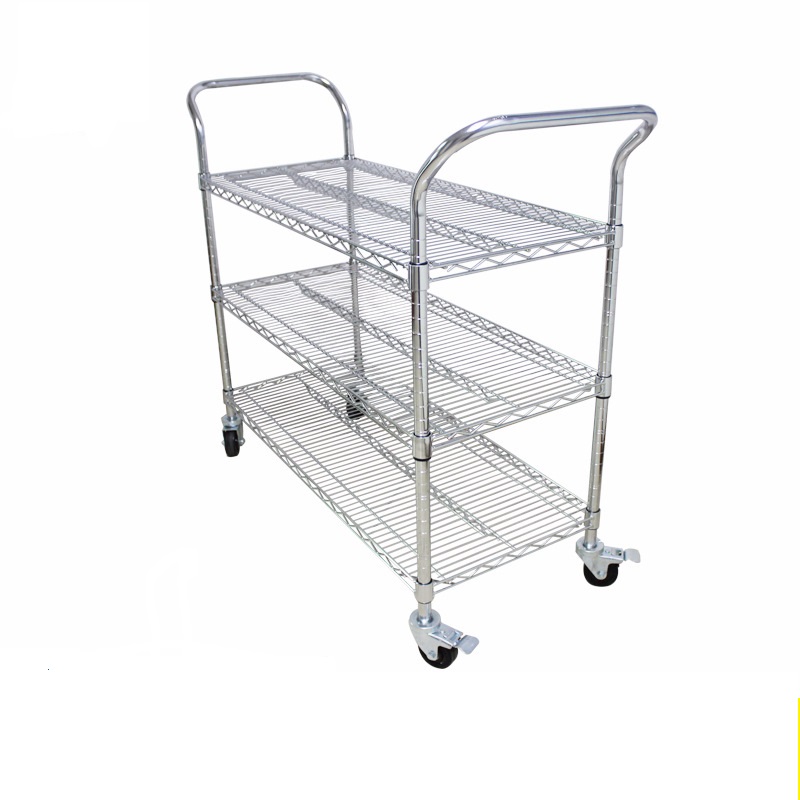

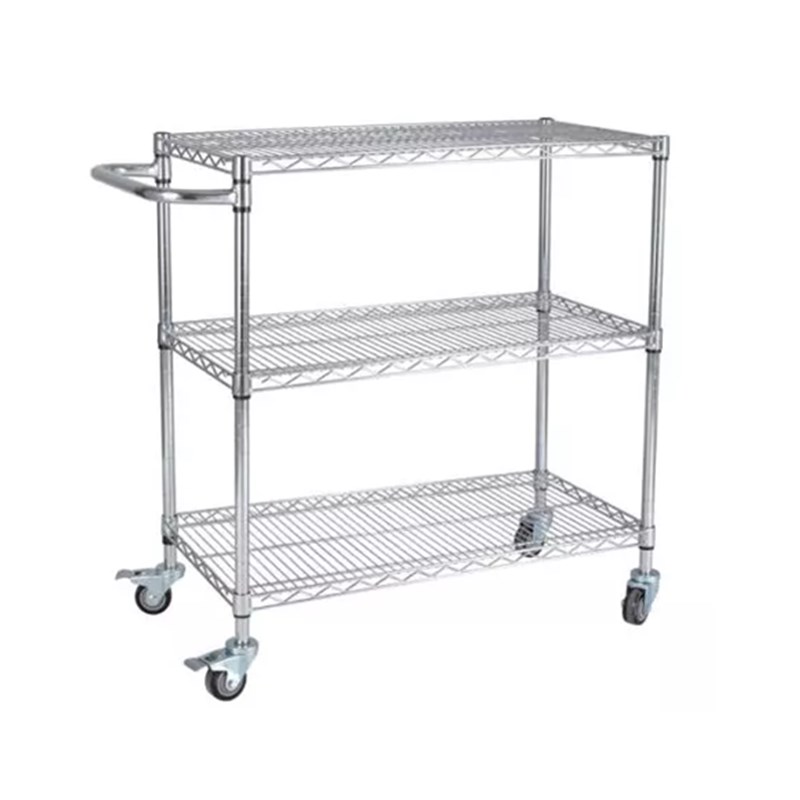

Wire shelf is made of carbon steel,and stainless steel.The diameter of wire rod is according to international criteria: ø6.0mm, ø 4.5mm, ø 3.5mm.

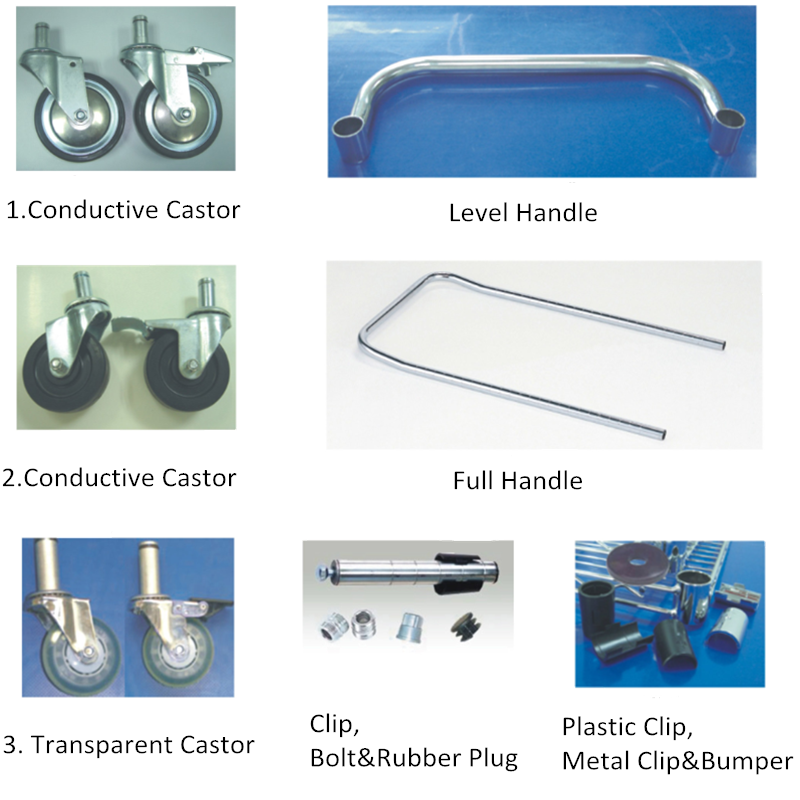

- Handles and posts are made of carbon steel,and stainless steel.Tube diameter: ø25.4mm, thickness:1.4mm.
- Surface treatment:Chroming,stainless steel and Resin coating.
- Weight Capacity: 20kgs~350kgs/shelf
- Salt spray test: =48 hours
- Used widely in many places.The metal material is dust free and ESD,the height can easily be adjusted .

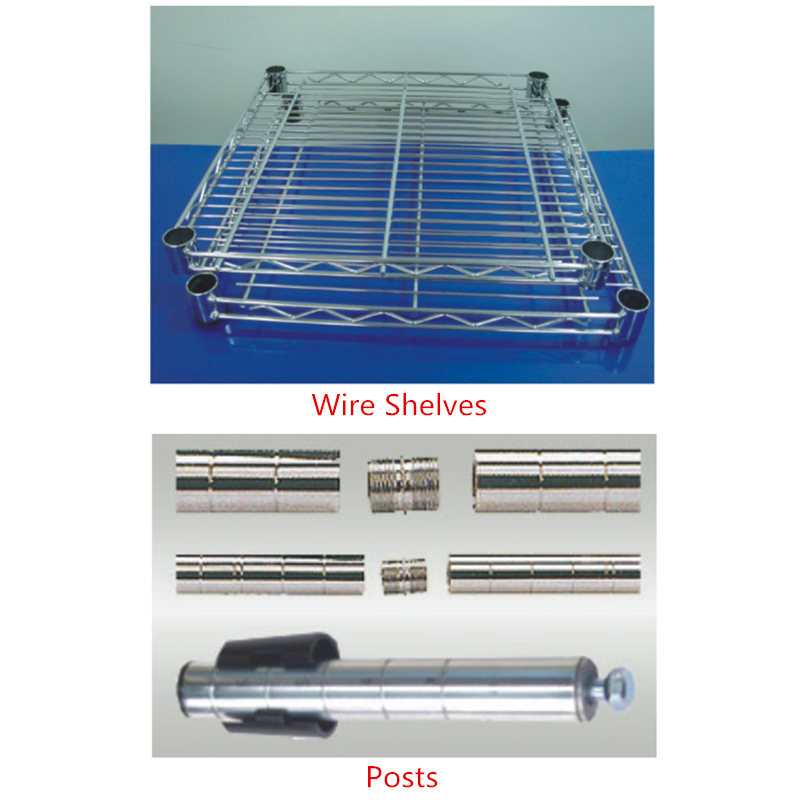

Wire Shelves Parameter
| Width | Length | Weight（kg)
Cartbon steel |
Weight( kg )
Stainless steel |
Width | Length | Weight（kg)
Cartbon steel |
Weight( kg )
Stainless steel |
||
| 355 | 610 | 2.7 | 2.9 | 457 | 610 | 3.2 | 3.5 | ||
| 762 | 3.2 | 3.5 | 762 | 3.6 | 3.9 | ||||
| 914 | 3.6 | 3.9 | 914 | 4.3 | 4.3 | ||||
| 1067 | 4.3 | 4.7 | 1067 | 5.0 | 5.5 | ||||
| 1220 | 4.7 | 5.1 | 1370 | 6.5 | 7.1 | ||||
| 1524 | 6.3 | 6.9 | 1524 | 7.7 | 8.4 | ||||
| 1830 | 7.7 | 8.2 | 1830 | 9.1 | 9.9 | ||||
| 533 | 610 | 3.6 | 3.9 | 610 | 610 | 4.1 | 4.5 | ||
| 762 | 4.1 | 4.5 | 762 | 5.0 | 5.5 | ||||
| 914 | 5.0 | 5.5 | 914 | 5.9 | 6.4 | ||||
| 1067 | 5.4 | 5.9 | 1067 | 6.8 | 7.4 | ||||
| 1220 | 6.4 | 7.0 | 1220 | 7.3 | 8.0 | ||||
| 1370 | 7.3 | 8.0 | 1370 | 8.4 | 9.2 | ||||
| 1524 | 8.2 | 8.9 | 1524 | 9.5 | 10.4 | ||||
| 1830 | 10.9 | 11.9 | 1830 | 11.8 | 6.4 | ||||
| 762 | 914 | 6.8 | Material: wire, sheet and perforated sheet, carbon steel or stainless steel,
Customization is available. |
||||||
| 1220 | 9.5 | ||||||||
| 1524 | 11.8 | ||||||||
| 1830 | 14.0 | ||||||||
Posts Parameter
| Length (mm) | Weight (kg) | Length (mm) | Weight (kg) | Length (mm) | Weight (kg)) | ||
| 450 | 0.6 | 1350 | 1.4 | 1880 | 2.0 | ||
| 600 | 0.75 | 1500 | 1.6 | 2000 | 2.1 | ||
| 875 | 0.9 | 1600 | 1.7 | 2200 | 2.35 | ||
| 1200 | 1.3 | 1800 | 1.9 | 2400 | 2.6 |
