Anti-static rubber mat or ground mat should be laid out in the workshops and advanced laboratories for microelectronic industries such as electronic semi-conduct devices, electronic computers, electronic communication equipment and integrated circuits etc. To eliminate damages caused by static electricity. When anti-static rubber mat (ground mat) are laid out and grounded, the working surface will discharge the static electricity of human bodies so that a near-equipotential can be maintained for ESEDS tweezers, tools, utensils and instruments, through which human bodies contact the working table and static sensitive devices(SSD) are free from broadband interference produced by static discharging such as triboelectrification etc. In this way, electrostatic protection is realized.
| P.N. | Name | Description |

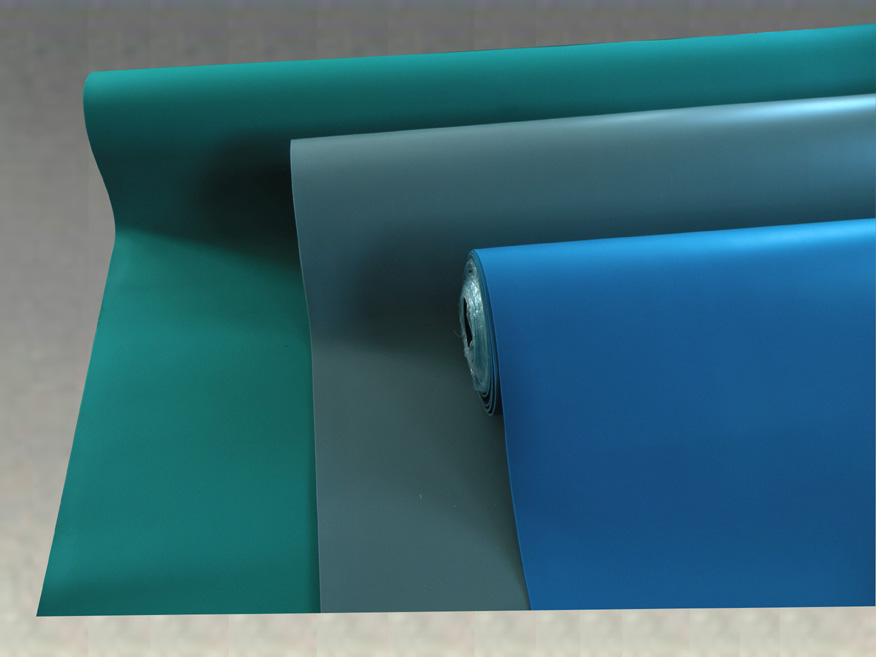

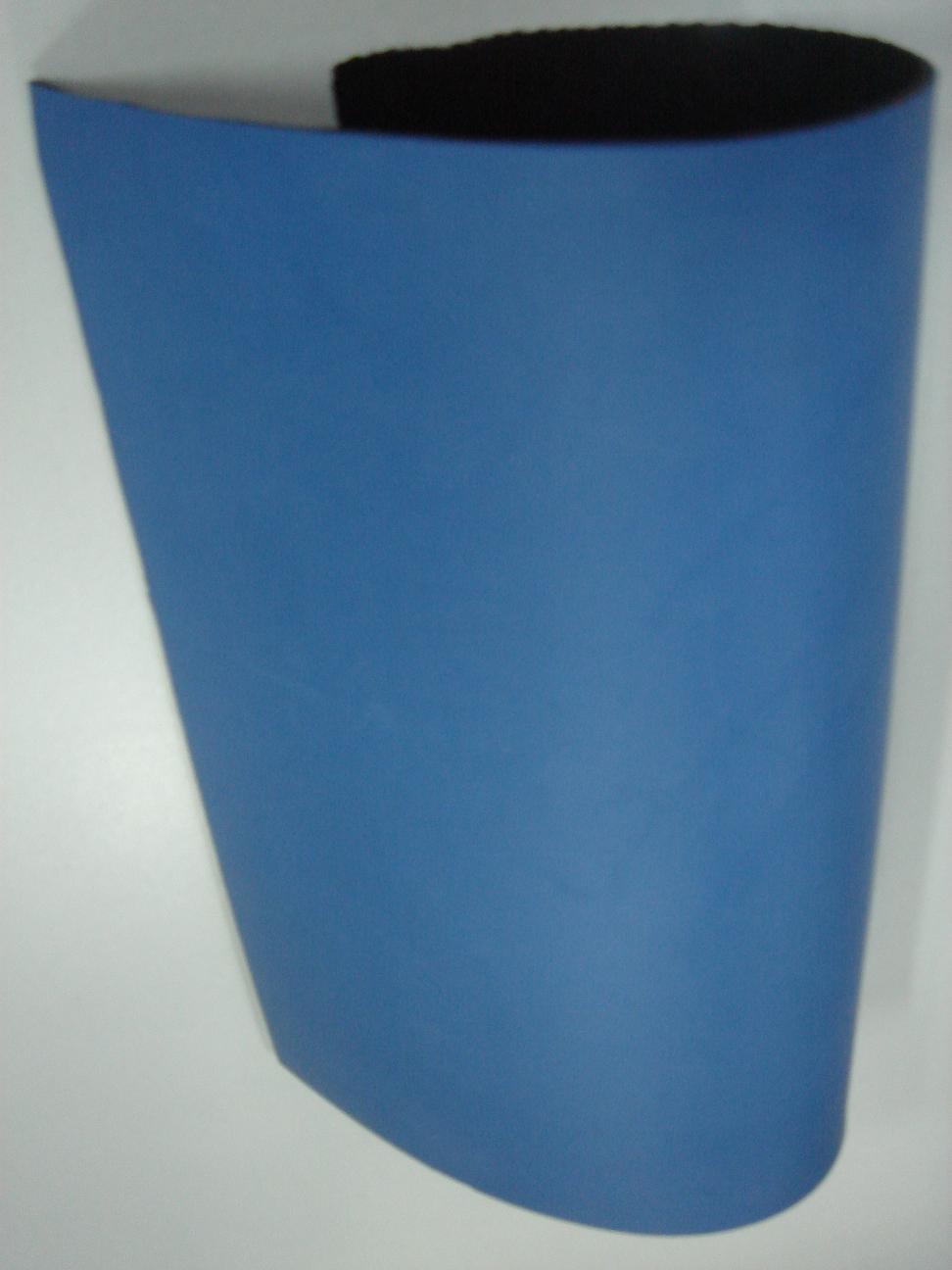

| D0401 | ESD Rubber Mat(Rubber) | Anti-distortion, long life quality |
| D0402 | ESD Rubber Mat(Anti-ultraviolet, Rubber) | Anti-ultraviolet, anti-distortion, long life quality |
| D0403 | ESD Table Mat(PVC) | Not contain S、Hg、NH3+、Pbany harmful substances |

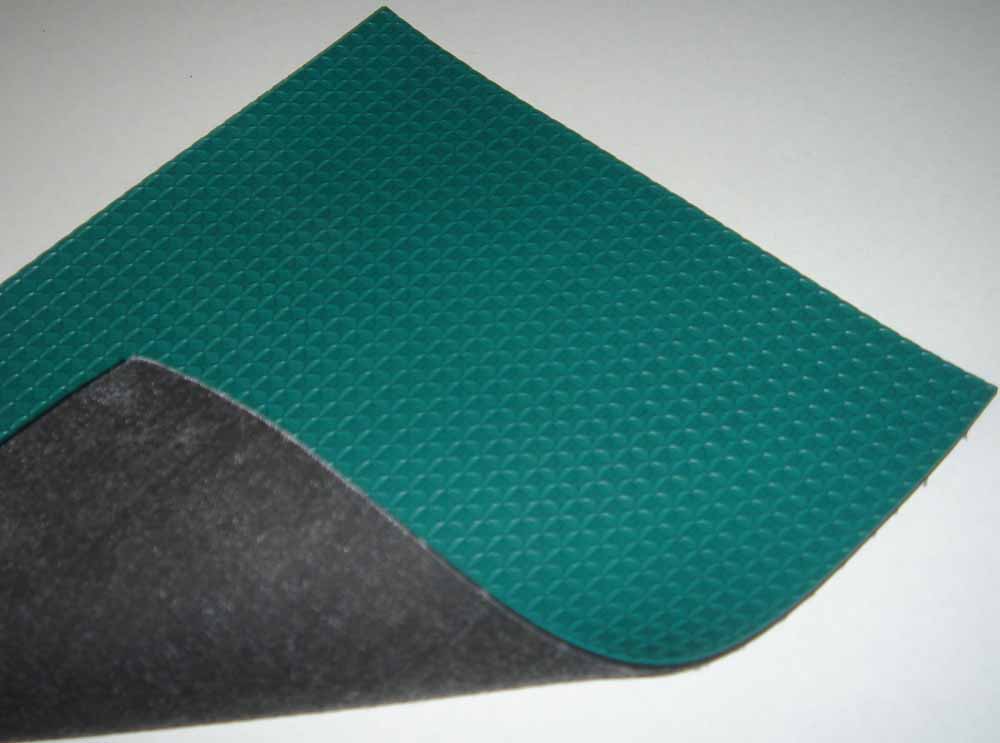

| D0404 | ESD Ground Mat | Rubber material, anti-slip |

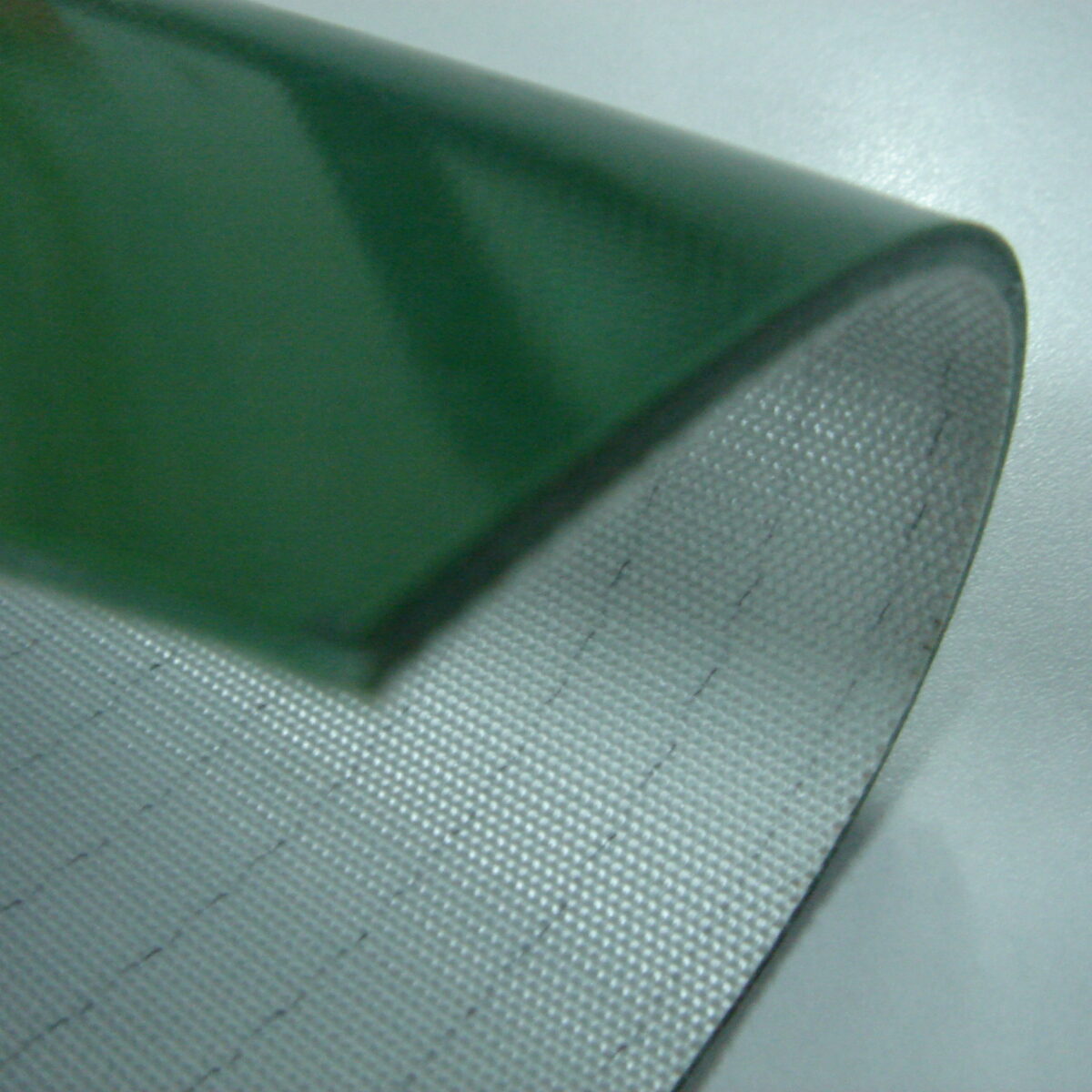

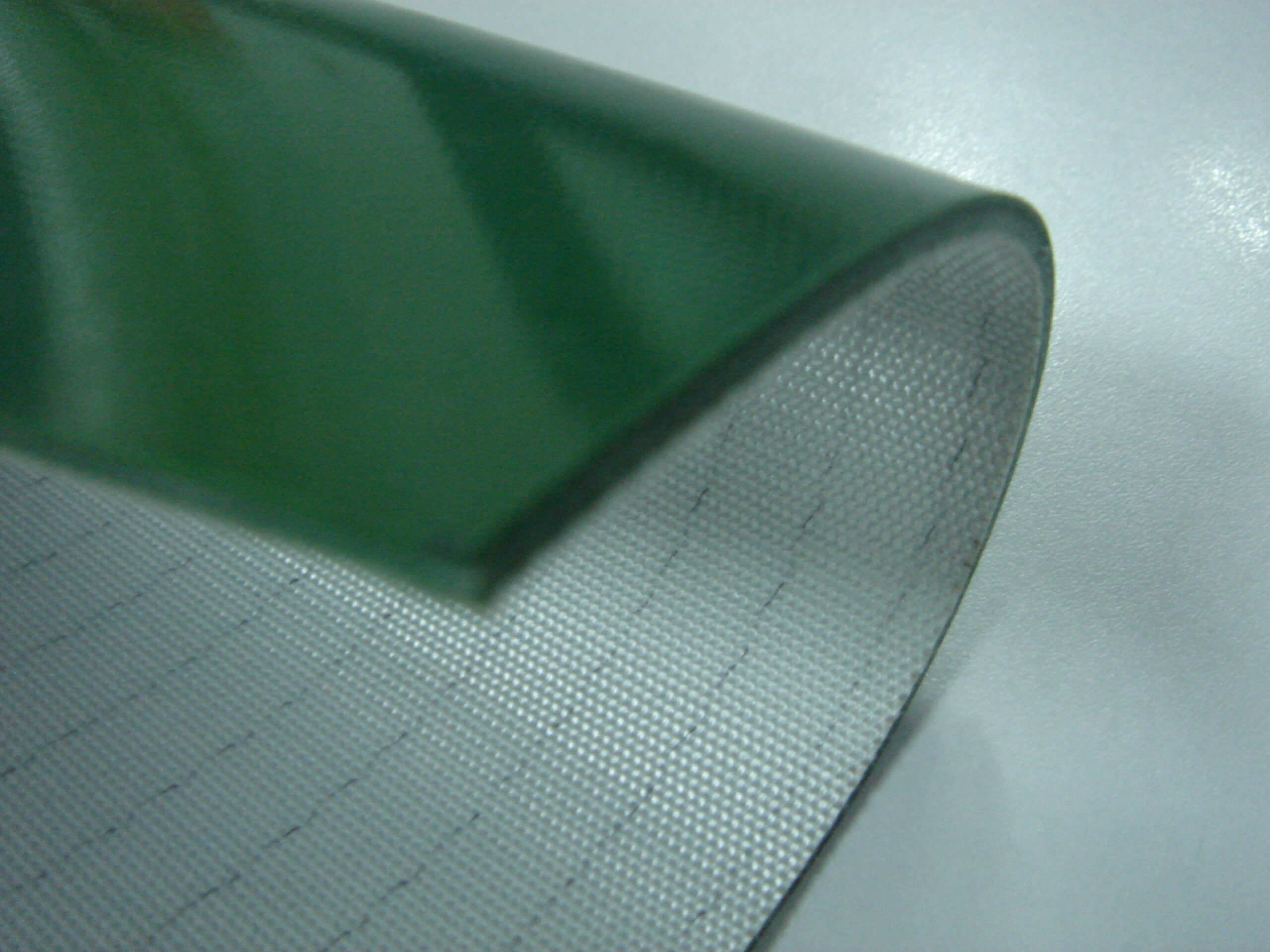

| D0405 | ESD Conveyer Belt | For rotation production line, Nylon Fabric inside |
| Surface Shine Glossy or Dull | ||
| Size： T(2 ,3mm) x W(0.6 ,0.9 ,1.0 ,1.2 M) x L(0~50M) Other size is Available. |
||
| Test Item | Test Result | |
| Tension Strength | 3.6Mpa | |
| Breakage coefficient of elongation | 188% | |
| Tear strength(right angle) | 20.6KN/M | |
| Resilience (6pcs sheets lapping over) | 14% | |
| Temperature of impact embrittlement (not cut) | -25℃ No damage | |
| Permanent variation under 70℃*22h,25% compression | 17.9% | |
| Aging in hot air(70℃*22h) | Variation of tension strength | +8.0% |
| Variation of breakage coefficient of elongation | -3.8% | |
| Heat loss | 1.08% | |
| Test Standard：GB1040，GB/T529，GB1681，GB5470，GB10654，GB/T7141 | ||
| Parameter of rubber mat/ground mat (2mm thickness) | ||
| Static Dissipation layer | Surface resistance | 107-109 Ω |
| Friction static voltage | <100V | |
| Conductive layer | Surface resistance | ≦106Ω |
| Friction static voltage | <50V | |
| Static decay time | 5000V — 500V | <1.9s |
| Volume resistance | 107 — 1010 Ω | |
