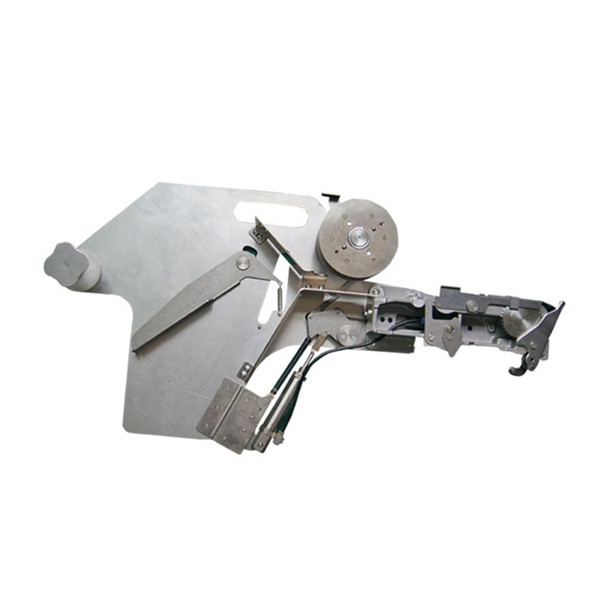

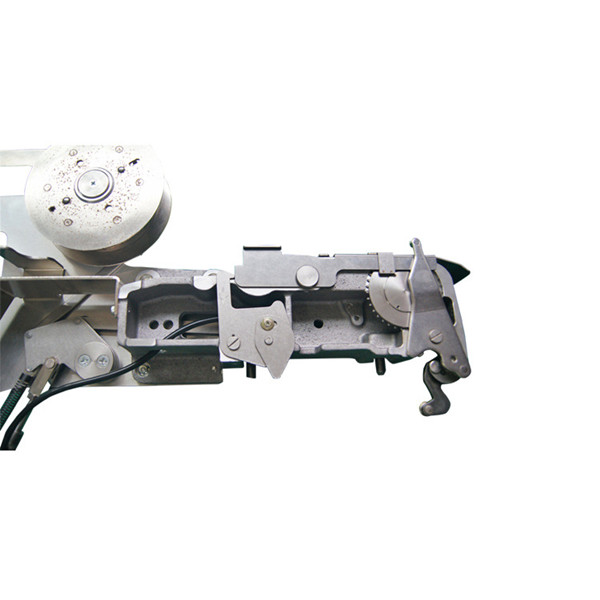

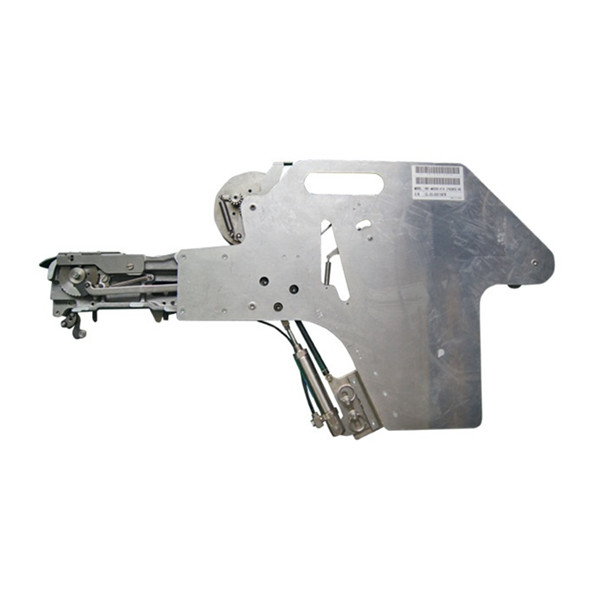

SMT feeder for YAMAHA machine-CL-32mm

  • Model:YMH CL-32mm
  • Brand: Maxsharer
  • Delivery: 7-10 working days
  • Warranty: 12 months

INQUIRY NOW

×Enter your message





    YMH CL-8*2mm/8*4mm/12mm/16mm/24mm/32mm/44mm/56mm for YAMAHA YV/YG machine

    YMH-FT-8*2mm/8*4mm for YAMAHA YG12/YG 12F machine

    YMH-SS-12mm/16mm/24mm/32mm for YAMAHA YG12/YS 24



    Part Number ModelSizeDrive ModeFor Machine
    YMH-CL8*2-0201CL8*2mm  0201PNEUMATICYAMAHA YV/YG
    YMH-CL8*2-0402CL8*2mm  0402PNEUMATICYAMAHA YV/YG
    YMH-CL8*4CL8*4mmPNEUMATICYAMAHA YV/YG
    YMH-CL-12CL12mmPNEUMATICYAMAHA YV/YG
    YMH-CL-16CL16mmPNEUMATICYAMAHA YV/YG
    YMH-CL-24CL24mmPNEUMATICYAMAHA YV/YG
    YMH-CL-32CL32mmPNEUMATICYAMAHA YV/YG
    YMH-CL-44CL44mmPNEUMATICYAMAHA YV/YG
    YMH-CL-56CL56mmPNEUMATICYAMAHA YV/YG
    YMH-FT-8*2FT8*2mmPNEUMATICYAMAHA YG12/YG 12F
    YMH-FT-8*4FT8*4mmPNEUMATICYAMAHA YG12/YG 12F
    YMH-FS-8*2FS8*2mmPNEUMATICYAMAHA YG12/YG 12F
    YMH-FS-8*4FS8*4mmPNEUMATICYAMAHA YG12/YG 12F
    YMH-SS-8SS8mmELECTRICYAMAHA YG12/YS 24
    YMH-SS-12/16SS12/16mmELECTRICYAMAHA YG12/YS 24
    YMH-SS-24SS24mmELECTRICYAMAHA YG12/YS 24
    YMH-SS-32SS32mmELECTRICYAMAHA YG12/YS 24

    SMT (surface mount technology) component placement systems, commonly called pick-and-place machines or P&Ps, are robotic machines which are used to place surface-mount devices (SMDs) onto a printed circuit board (PCB).

    They are used for high speed, high precision placing of broad range of electronic components, like capacitors, resistors, integrared circuits onto the PCBs which are in turn used in computers, consumer electronics as well as industrial, medical, automotive, military and telecommunications equipment.

    Surface mount components are placed along the front (and often back) faces of the machine. Most components are supplied on paper or plastic tape, in tape reels that are loaded onto feeders mounted to the machine. Larger integrated circuits(ICs) are sometimes supplied arranged in trays which are stacked in a compartment. More commonly ICs will be provided in tapes rather than trays or sticks. Improvements in feeder technology mean that tape format is becoming the preferred method of presenting parts on an SMT machine.

    Early feeder heads were much bulkier, and as a result it was not designed to be the mobile part of the system. Rather, the PCB itself was mounted on a moving platform that aligned the areas of the board to be populated with the feeder head above.
